PVDF-Polyvinylidene fluoride

PVDF is a highly non-reactive thermoplastic fluoropolymer produced by the polymerization of vinylidene difluoride.


Process for manufacturing polyvinylidene fluoride(PVDF) homopolymer or copolymer comprising the step of radical polymerization of vinylidene fluoride (VDF) and optionally of a comonomer, in aqueous dispersion in the presence of: HFA161 (CH3—CH2F) as transfer agent; a radical initiator; optionally, a dispersing additive.


Batch process or semi-continuous process for the manufacture of PVDF homopolymer or copolymer comprising the steps of:

  1. charging a polymerization reactor with water, the optional dispersing additive and optionally a paraffin wax;

  2. deaerating said reactor in order to remove the oxygen;

  3. heating said reactor to the chosen temperature and charging said reactor with the VDF and the optional monomer until the desired pressure is reached;

  4. introducing HFA161 as the transfer agent into the reactor either in total or partly at the start and partly during the polymerization;

  5. adding initiator in total or partly, in order to start the polymerization and the drop in pressure that results therefrom is compensated for by the addition of VDF and the optional comonomer;

  6. adding the optional remainder of the initiator during polymerization;

  7. degassing the reactor after introducing the intended amount of VDF and optional comonomer, and separating the PVDF by any means from the water and the optional residues of the reactants involved.


PVDF features

PVDF is a tough engineering thermoplastic that offers a balance of performance properties. It has the characteristic stability of fluoropolymers to resist harsh thermal, chemical and ultraviolet environments,  in addition to being readily melt-processed by standard methods, can be dissolved in polar solvents, such as organic esters and ketones for coating applications.

Featured Products

Downloads

Loading Circle.gif

UREA TO AMMOUNIA

Add paragraph text. Click “Edit Text” to update the font, size and more. To change and reuse text themes, go to Site Styles.

Collapsible text is perfect for longer content like paragraphs and descriptions. It's a great way to give people more information while keeping your layout clean. Link your text to anything, including an external website or a different page. You can set your text box to expand and collapse when people click, so they can read more or less info.

SUBTITLE (8).png
WFF EVAPORATOR

Add paragraph text. Click “Edit Text” to update the font, size and more. To change and reuse text themes, go to Site Styles.

Collapsible text is perfect for longer content like paragraphs and descriptions. It's a great way to give people more information while keeping your layout clean. Link your text to anything, including an external website or a different page. You can set your text box to expand and collapse when people click, so they can read more or less info.

SUBTITLE (29).png

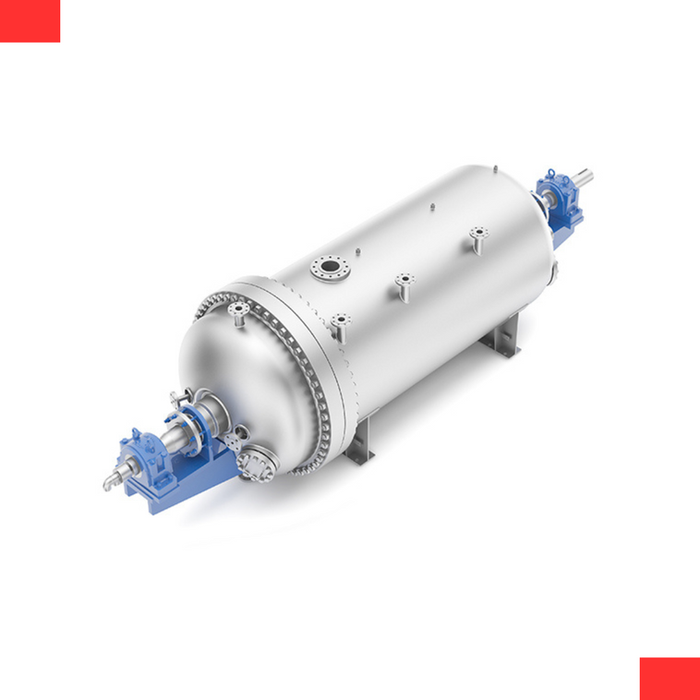

LAB REACTOR
